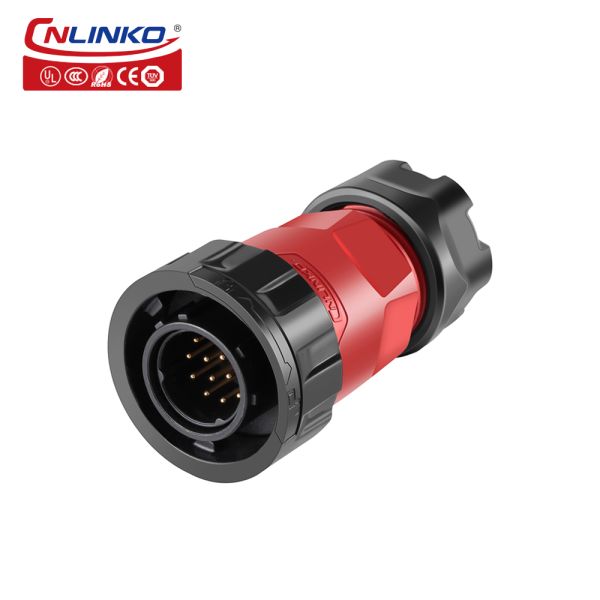

CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket

Name: CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket
Brand: CNLINKO
Price: 3.38 USD

Quality CNLINKO YM20 Plastic Waterproof 14 Pin Male Female Plug Socket IP68 Waterproof Connector Plastic Plug Socket for sale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YM-20-C14PE-02-001A

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $3.38-3.94

Type : Signal

Application : Industrial

Gender : male and female

Produce type : Waterproof connector

Current rating(A) : 5A

Operating voltage : 250V

Protection level : IP68

Shell & Insulated Parts : High Performance Engineer Plastic

Connecting mode : plug and socket connector

Hardware Matel : Zinc Alloy (pearl hard chromium)

Contact pin : Copper alloy(gold-plated)

Assembly : Solder

Contact Now

Industrial Plug Connector shell Housing Terminal Wafer IP67 Waterproof 14 pin DC Power Connector

Product Description

²multi-pins(2-14 PINGS) for varies industrial demands

²PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

²gold-plated contact, high performance of corrosion resistance and electrical

conductivity effectively deal with temperature rise.

²1/4 mount connector, easy operation and installation

²dustproof cover design under off-working condition

²rated current is 5A rms

²protection level:IP68

Specifications

YM-20-C12PE-01-001,YM-20-J12SX-01-001
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	Φ1.0×12
Current rating(A)	5A
Operating voltage(AC.V.rms)	400V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
